Arrays of 1s and 0s that describe to the CPU how to direct the flow of information, per Clock cycle Each memory address (in the main ROM) will hold an entry that represents a microstate. Such an entry holds two crucial pieces of information: what signals to assert on the datapath for a specific microstate and what the next state should be (what address to jump to next). Lots of microcode culminates in a microprogram. Input bits ←> current state, address Each line ←> outputs, next state

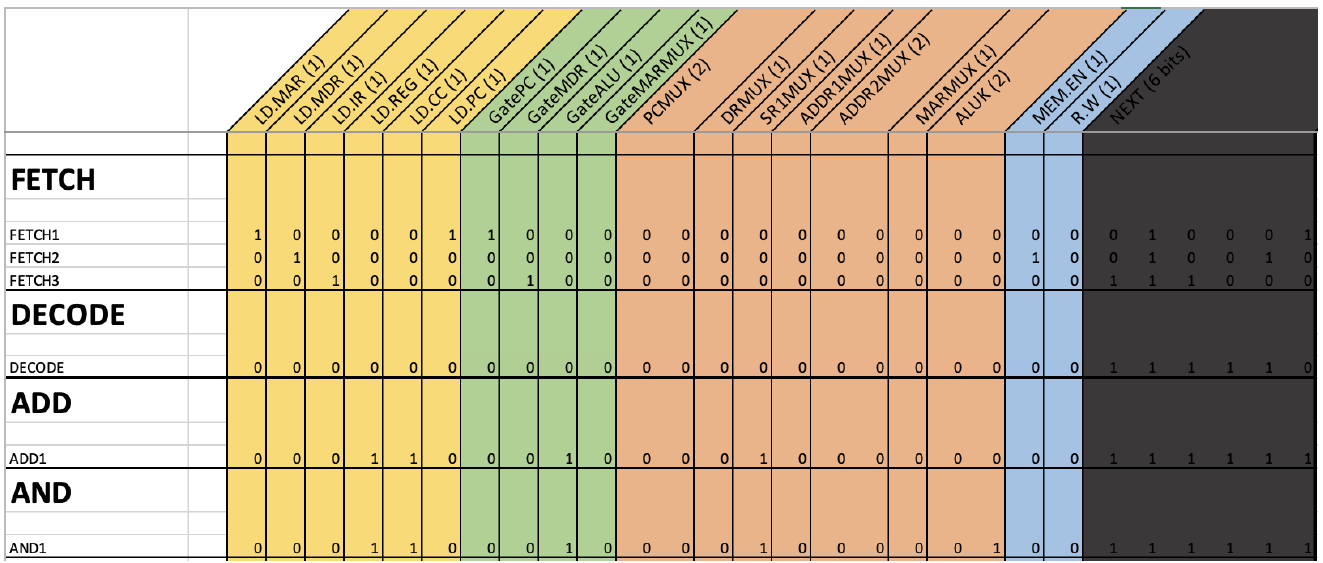

Microcode for LC3

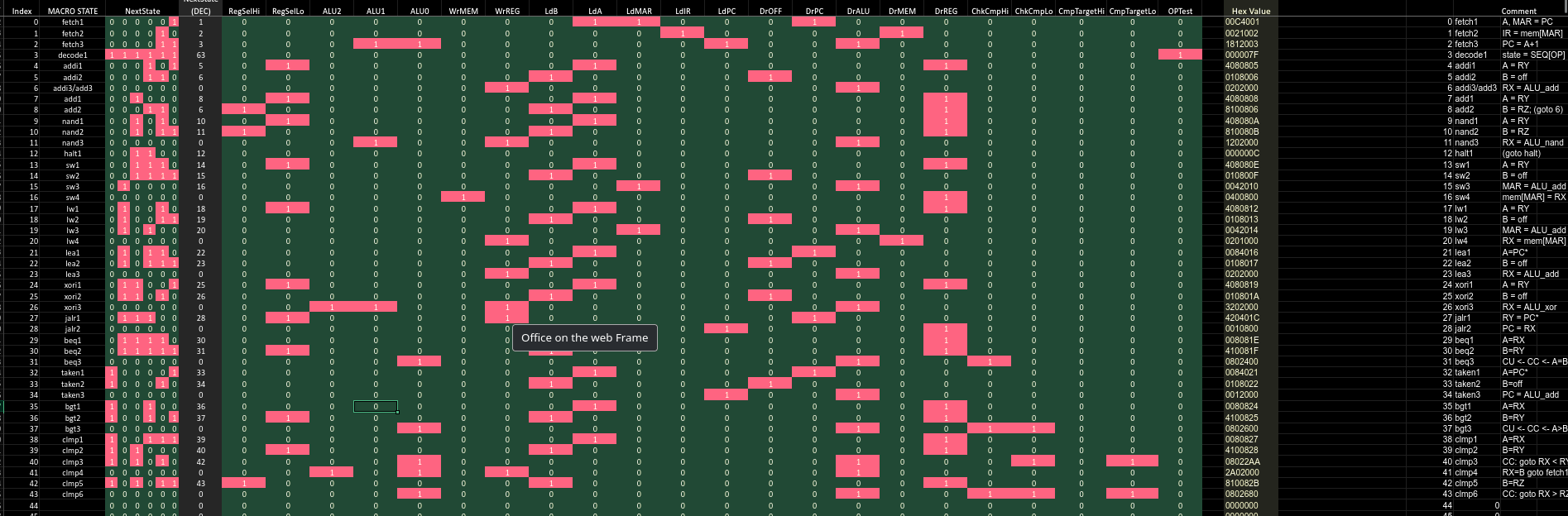

Microcode for LC 4200’s main ROM
