C Memory Layout

1 min read

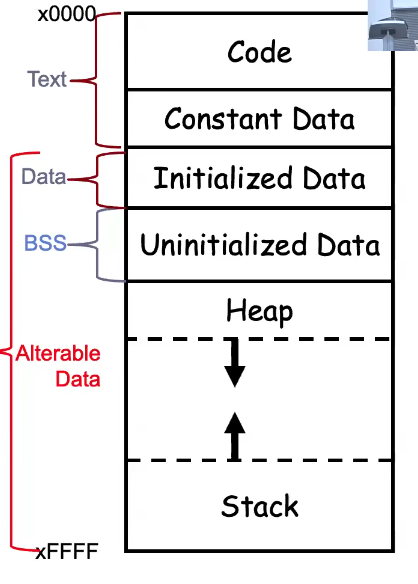

  • Text
    • Program code (unmodifiable)
    • Constant data (maybe)
  • Data
    • Constant data (maybe)
    • Initalized Variables
  • Block Starting with Symbol (BSS)
    • Unitialized static data
    • Same as blkw from LC3

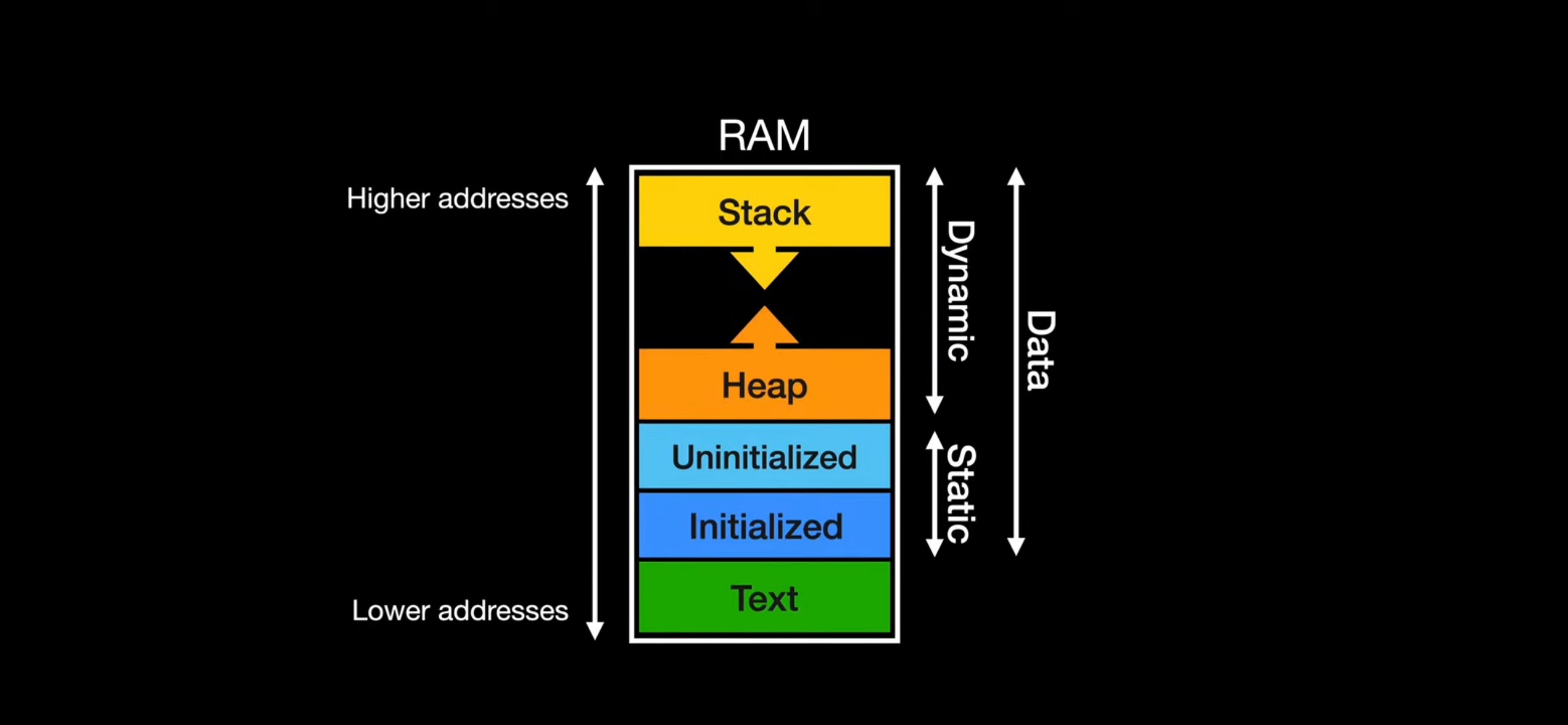

Or in lab we say it’s Source code, Stack, Heap, Data, where data refers to both intialized data and uninitialized data (BSS)
