Arithmetic Logic Unit
A Combinational Logic unit that performs arithmetic and bitwise operations on integers.

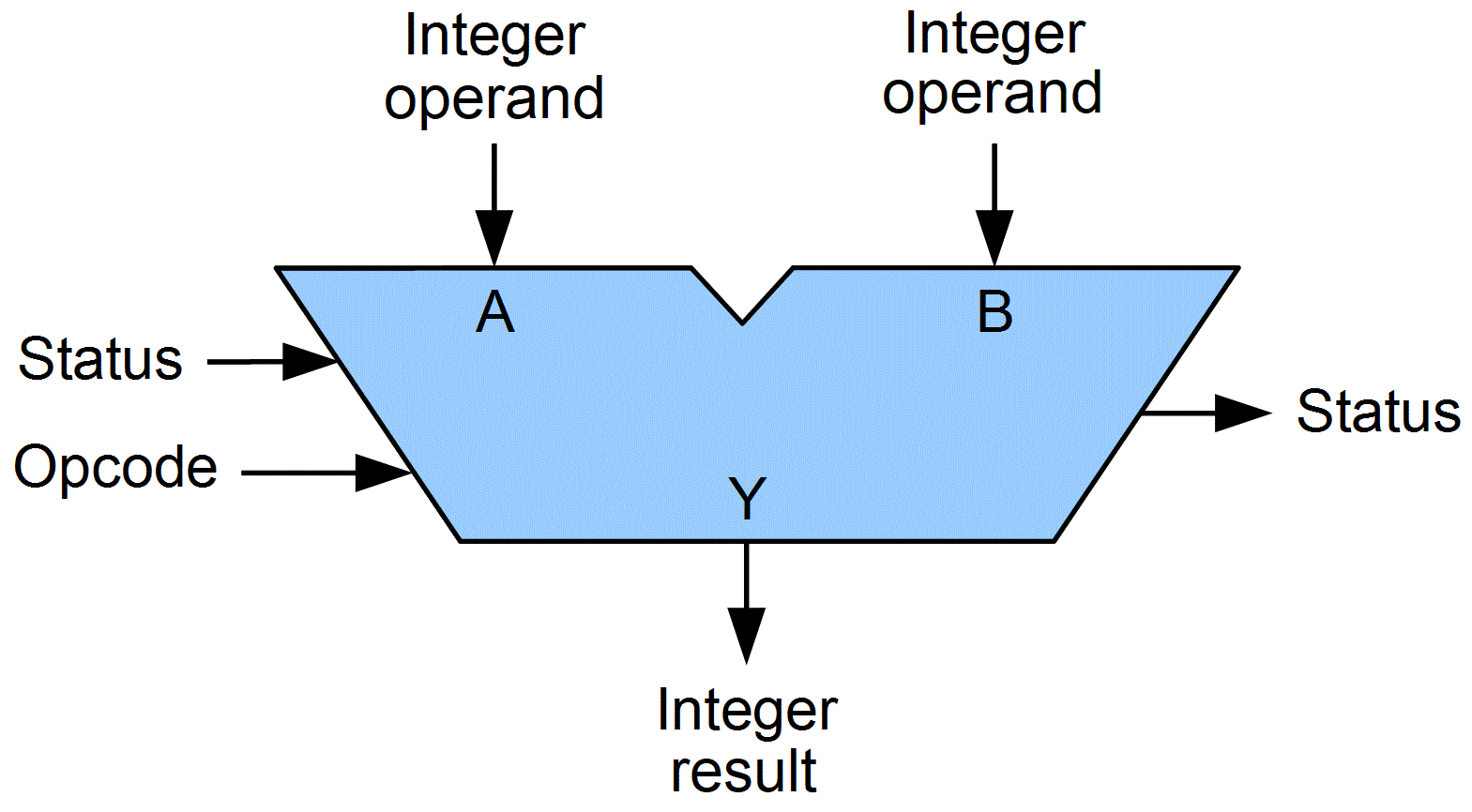

A symbolic representation of an ALU and its input and output signals, indicated by arrows pointing into or out of the ALU, respectively. Each arrow represents one or more signals. Control signals enter from the left and status signals exit on the right; data flows from top to bottom.
