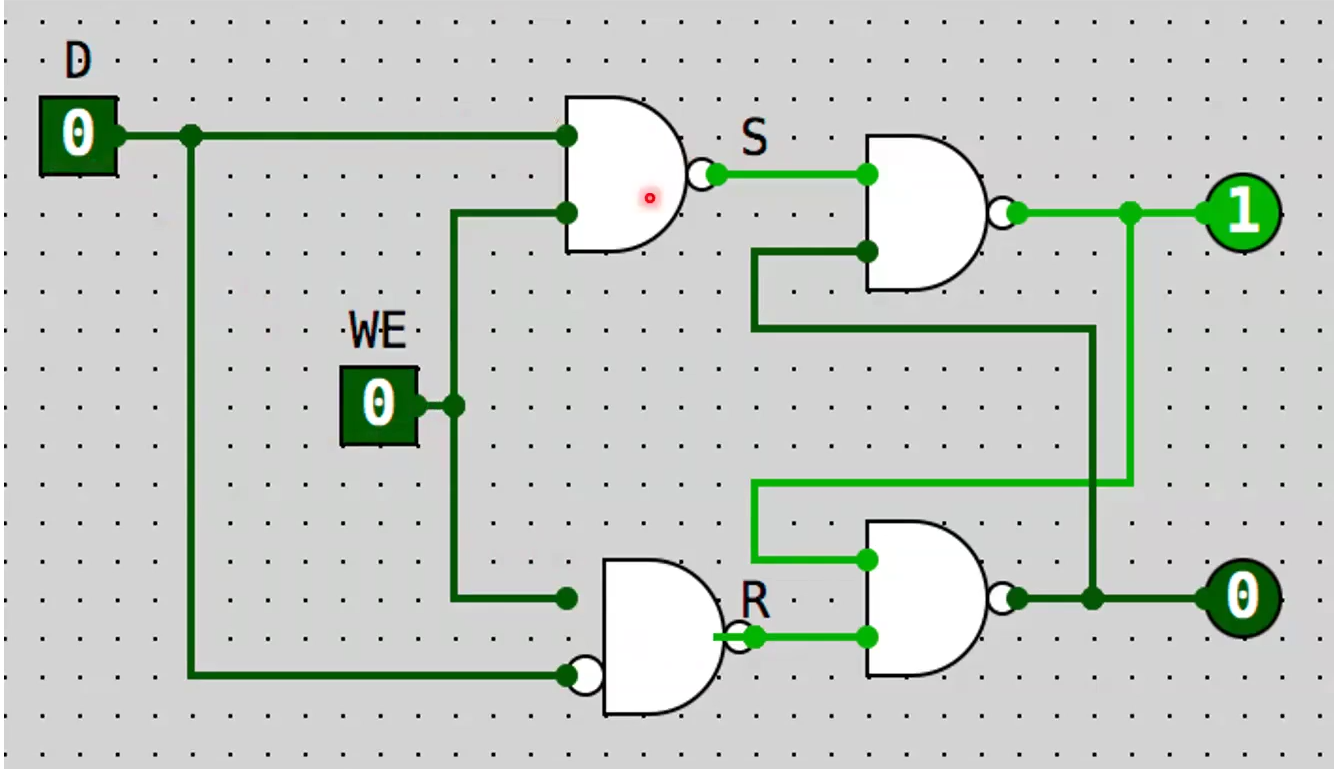

Gated D Latch

Extension of SR Latch

• WE “Write-enabled” to write, connected to Clock, usually
• D for input
• 1 bit memory
• Level Triggered

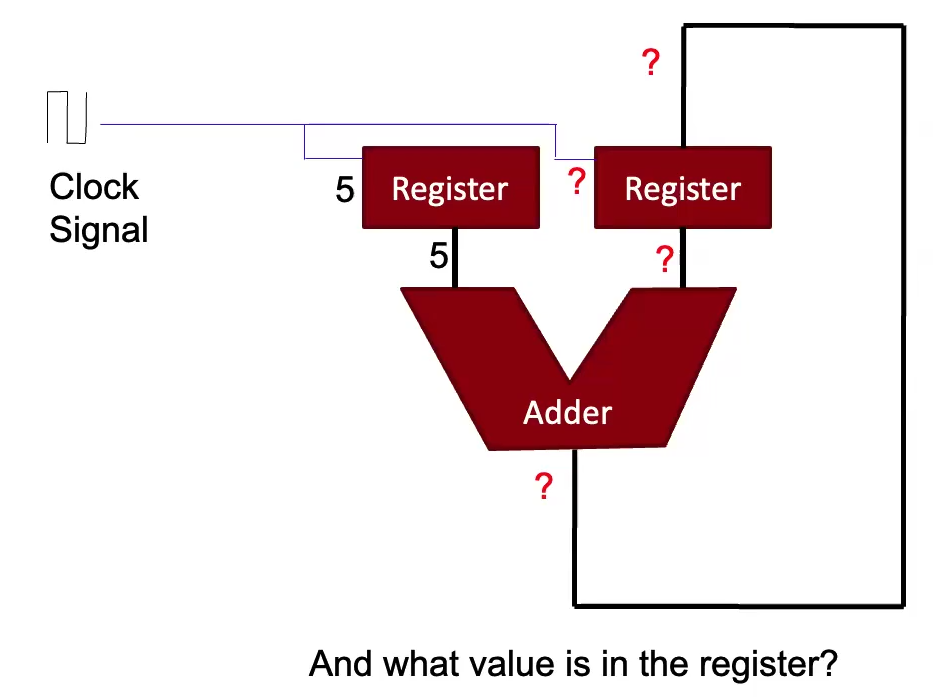

  • which can cause unpredictability if not setup with D Flip Flop
